Introduction
On a request offering form there can be a textarea prompt to capture text input from the user. In some cases the amount of text expected is pretty short such as a title for a work item, a user name, a computer name, etc. In those cases it is appropriate to have a single line text prompt which captures the input but doesn't take up a lot of space on the screen. In other cases, the amount of text captured from the user can be much longer such as a description of an issue, a business justification, etc. In those cases the size of the text box should be much taller so that the user can see all of the text entered at a glance and not have to scroll up/down through the textbox.
How to Configure the Size of a Text Box Prompt
When you are creating/editing a request offering you can configure the min/max length of a text prompt. The max length will control the height of the textbox when it is rendered on the form as follows:
- 1-199 => 1 row
- 200-499 => 3 rows
- 500-999 => 5 rows
- 1000+ => 7 rows
Note: typically most string properties in the SCSM data model have a max length of 256 or 4000 and should never really be longer than 4000.
To configure the request offering text prompt max length do the following:
- Open the request offering wizard (if you are creating a new request offering) or the request offering properties dialog (if you are editing an existing request offering).

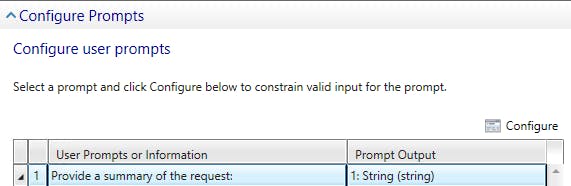

- Navigate to the Configure Prompts page/tab.
- Select the String prompt you want to configure and click the Configure button
4) Check the 'Limit string length' checkbox and specify the Maximum Length
- Click OK
- Change any other prompts that you need to
- Click OK or finish the wizard.
Once the configuration has changed you can either way for the automated update of the service catalog (every 2 hours by default) to happen or you can restart the Cache Builder service.
Examples
Max length = 150 --> 1 line:

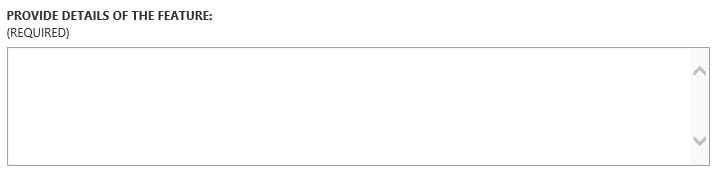

Max length = 3000 --> 7 lines
